Power Racks, Rigs & Squat Stands

Exercise rigs and power racks is a general term for weightlifting cages and many other exercise stands. The principle lies in modularity, where the foundation consists of uprights/posts into which accessories are attached using holes – such as adjustable J-Hooks for bench presses/squats, or dip bars, among others.

The design can always be customized – some may prefer a simple stand with a pull-up bar, while others may also use pulleys and other adapters. The following categorization is based on the basic shape/type. If you are interested in further information, please also refer to the Frequently Asked Questions (FAQ) section at the bottom of this page, or a similar section on each type of rack’s page. Of course, if you still have questions or if you’re looking for a fully customized rack, don’t hesitate to get in touch with us.

Menu - posilňovacie klietky
Menu - Drepovacie stojany
Klietka na cvičenie na stenu
Menu - Voľne stojace konštrukcie na cvičenie

Division by series:

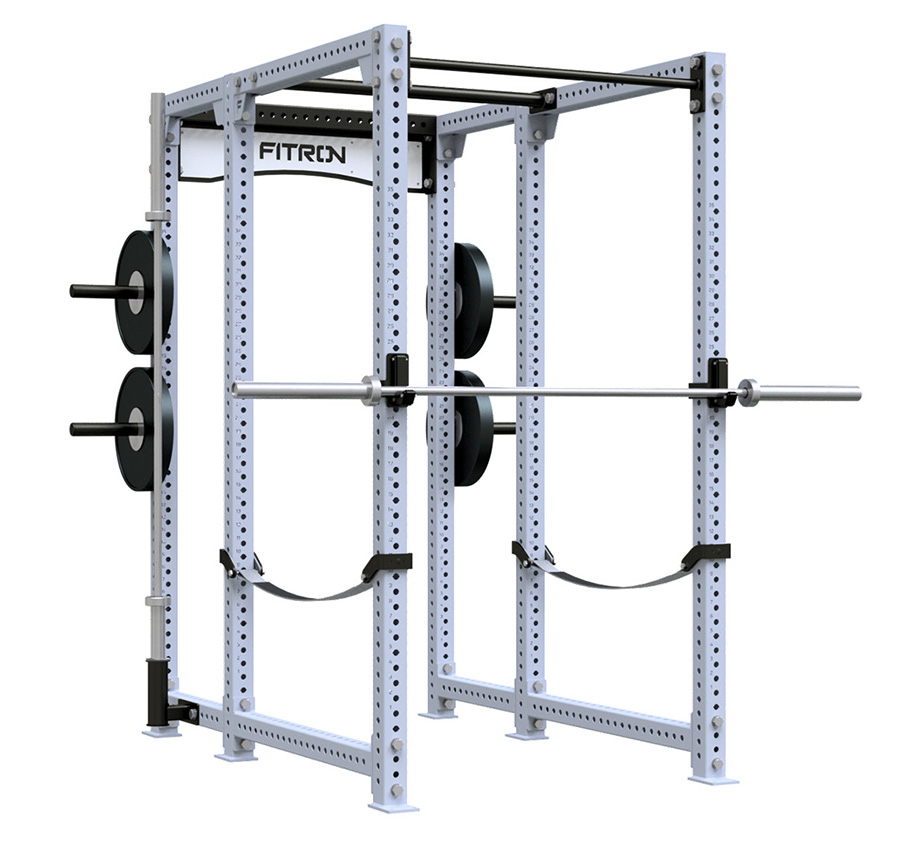

M-Series

Best-selling

Modern. Massive. Modular. The M-Series combines years of experience, customer feedback, and current trends.

  • Uprights profile: 80×80 mm
  • Hardware: M10
  • Pin diameter: ø20 mm

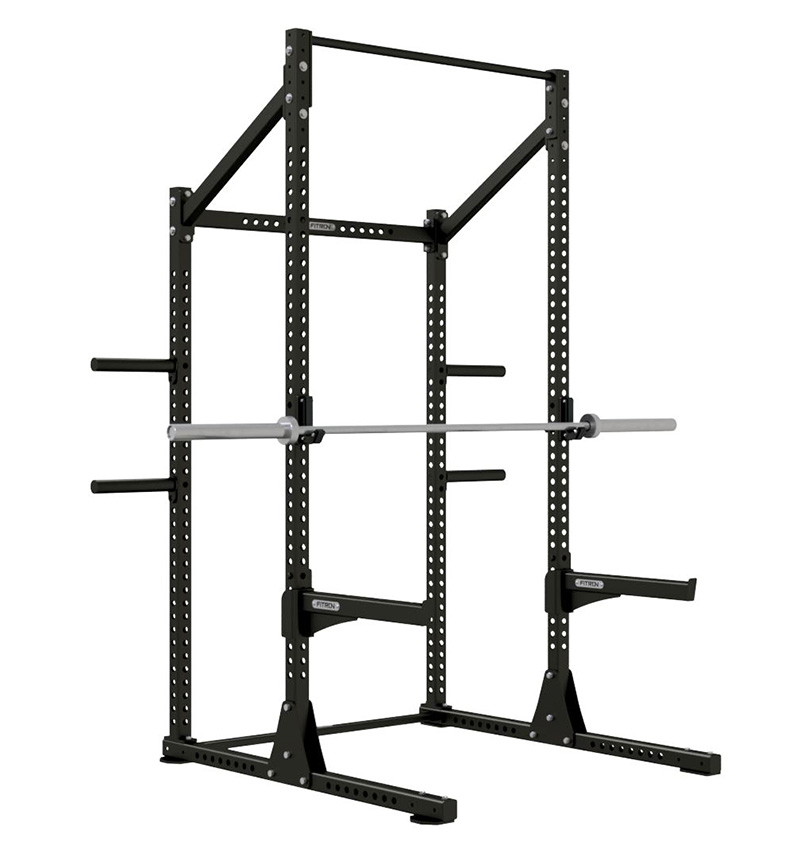

Classic series

Proven classic – sold since 2015. Our very first series of versatile exercise rigs, power racks and squat stands.

  • Uprights profile: 60×60 mm
  • Spájacie skrutky: M10
  • Pin diameter: ø20 mm

Cable racks – Functional trainers

Power racks and rigs with built-in cable machine

Exercise potential of the integrated cable machine

Functional trainer as part of a custom workout solution

Basic information for choosing your rig or rack:

Specs

In general, the overall width of the squat rack is determined by the following factors:

1) The inner dimension of a standard Olympic barbell.
– the total length of the gripping part (the dimension between the stoppers of the plates) is 131 cm.

2) Exercise comfort, as determined by the power rack manufacturer.
– If the rack width is too large (close to 131 cm), racking the bar can become problematic. Ample clearance is necessary so that the individual exercising does not need to spend a long time aiming and can easily place the barbell back.
– If the rack is too narrow, the clearance for safely placing the barbell is large, but it restricts the exercise itself – not only with an Olympic barbell (e.g., wide grip in bench press) but also during exercises on the pull-up bar.

All FITRON racks and squat stands have an outer dimension between the uprights of 122 cm. This is a width that ensures an ideal balance between exercise comfort and safe barbell racking. This parameter is the same for both series (changing the series changes the inner dimension).

3) Another important factor affecting overall use is the shape and dimensions of the barbell J-hooks (J-cups).
– J-hooks with a sandwich design are usually narrower and therefore safer.

The fundamental aspect of rigs and power racks lies in the holes, which serve the purpose of attaching additional accessories.

Hole Size – is one of the most crucial parameters and affects:
– Load capacity: The rack itself can handle a lot, but the attachments must handle the same load. The majority of accessories are mounted using welded pins – the larger the pin, the higher the load capacity. This is not only due to the obvious larger diameter of the pin itself but mainly because the welded joint is larger and stronger. Welds are often a critical point of failure (especially in inexpensive imported products).
– Compatibility: It’s common for rack attachments to evolve or change over time. A high-quality power rack should be compatible with accessories you might not even be aware of. A well-designed system can ensure ample load capacity for accessories you may not currently possess or may not have even heard of.

Manufacturers may be tempted to create a self-contained “ecosystem” of racks that are exclusive to their specific attachments. FITRON M-Series rigs and racks feature 80×80 uprights and holes with a 20.8mm diameter, designed for 20mm diameter pins. Consequently, they are compatible with accessories from other reputable European brands. The foresight of potential future compatibility makes this an advantageous feature.

Number of Holes – as a general rule, more holes result in greater modularity and customization options for the rack. The quantity of holes on the uprights is not only determined by the density but also the orientation.

Uprights of all FITRON racks have perforations on all four sides, providing extensive modularity. This allows for the adaptation and enhancement of the power cage or rack based on individual preferences. The center-to-center distance (hole spacing) is only 45mm, so everyone can find the ideal height.

Hole Marking – every 5th hole on the upright is identified by notches on the sides, significantly easing the process of aligning attachments (such as J-hooks) to the same height. For further simplification, M-Series uprights with laser-cut numbers are also available.

FAQ

Certainly, it’s a fairly common request. Whether you’re looking to modify the shape, size, or select a color based on your preferences, feel free to get in touch with us.

If you’re interested in assembling an M-Series power rack using readily available components, you can find them here: https://www.fitron.eu/rigs-racks/components/

The majority of our newly equipped fitness setups feature M-Series rigs and racks. It’s a newer option, boasts a more appealing design, and is favored by many customers. Because of its popularity, it holds a higher priority within our organization – this implies that new attachments are consistently developed and tested with it as the primary focus.

  • The overall weight of the weight stack is 110 kg, distributed across a total of 21 weights:
    – 1x 10kg guiding weight
    – 20x 5kg weights
  • Pulley ratio: 2:1
    – This means that 100 kg of weight feels like 50 kg during exercise
    – Standard for adjustable pulleys

Made in Slovakia

Our rigs, racks, and squat racks have been the pride of the FITRON portfolio for many years. Crafting a quality rack requires more than just some profile materials and an afternoon in the garage. Our products are the result of combining professional production technology, attentive consideration of customer requirements, and insights from the coaching community. Each element is evaluated not only for functionality but also for design. Both production and design take place directly in Slovakia (EU).

Our rigs and racks are available in two versions: the CLASSIC series and M-Series. These options cater to the training goals and budget of any gym, whether professional or for home fitness.
